Raritan Smartsensors

Obtain Critical Data to Extend the Health of Your Data Center

Especificaciones
Descripción
Más informaciónes
PDF

Accurately monitor temperature, humidity, airflow, differential air pressure, water leaks, dust/particles, proximity/motion, and vibration
Improve uptime and remediate critical risks by receiving real-time alerts of potential threats in your environment before they cause an issue
Save on cooling by confidently raising data center temperatures
Monitor airflow and air pressure to and from racks to prevent hot spots and bypass airflow
Stay alerted 24/7 of service-impacting conditions in onsite, remote, and lightsout facilities
Easy plug-and-play deployment with scalable sensor technology
Seamless integration to DCIM or other monitoring tools

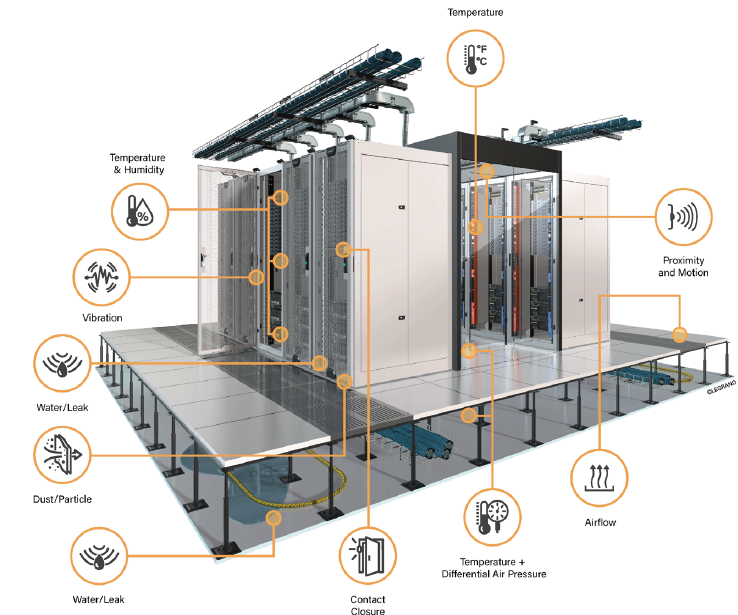

MONITOR YOUR DATA CENTER WITH PLUG-AND-PLAY SENSORS

Engineered to furnish accurate data and insight into your operation, Legrand® SmartSensors? advanced features allow easy deployment, clear identification of hot spots, and airflow management. Available models monitor temperature, humidity, airflow, differential air pressure, water/leaks, dust/particles, contact closures, proximity/motion, and vibration.

CONFORMANCE WITH ENVIRONMENTAL MONITORING GUIDELINES

SmartSensors are a valuable tool for accurately reporting and predicting critical environmental conditions affecting IT equipment and helping you follow ASHRAE guidelines. They facilitate the collection of crucial environment data and provide a more efficient management experience by routing collected data through the Xerus? Technology Platform embedded in Legrand?s Raritan and Server Technology branded rack power management devices.

INNOVATIVE FEATURES

LED INDICATOR

An LED light visually indicates when thresholds exceed predetermined levels, improving field response time when addressing critical risks.

DUAL RJ45 CONNECTORS

Dual RJ45 connectors simplify the installation and servicing of sensor packages without rewiring the rack or daisy chain, saving time and maintenance costs.

SINGLE BUS/STRING TECHNOLOGY

Ensure comprehensive measurement and monitoring by cascading different types of SmartSensors in a single bus/ string structure. Now cascade up to 32 sensor functions or 12 sensor packages* with standard Cat5/6 cables to instrument entire data center rows.

HIGH-ACCURACY AND HIGH-RELIABILITY MONITORING

SmartSensors are designed with the latest, most advanced metering components to prolong their lifespan, improve reliability, and ensure they run efficiently.

MANAGE SENSORS WITH DCIM

Environmental data collected by SmartSensors can be sent to DCIM or other monitoring software, allowing you to confidently raise ambient temperatures and adjust the fan speed in computer room air handlers and conditioners to increase energy savings and get the most out of cooling systems. SmartSensor packages support a cabling length of up to 30m (98ft), except for the DX2-PD2C5, which is up to 4m (13ft).

PLUG-AND-PLAY COMPATIBILITY

SmartSensors are designed for easy deployment with plug-and-play compatibility to an RJ45 Sensor port on the Controller of an intelligent Xerus-enabled rack power managing device, including:

Server Technology® PRO4X & PRO3X Rack PDUs
Raritan® PX4 & PX3 Rack PDUs
Raritan SRC Smart Rack Controllers
Raritan PX3 Inline Meters
Raritan PX3TS Hybrid Rack Transfer Switches
Raritan BCM2 Branch Circuit Monitors

Specifications

Part Number	Type of Sensor	Description	Range	Accuracy
DX2-T1	Temperature	One temperature sensor	0°C to 20°C 20°C to 70°C	± 2°C ± 1°C
DX2-T1H1	Temperature and Humidity	One combination sensor including temperature and humidity functions	0°C to 20°C 20°C to 70°C 0% RH to 100% RH	± 2°C 1 ± 1°C 1 ± 5% /RH *2
DX2-T2H2	Temperature and Humidity	Two DX2-T1H1 sensor packages/td>	0°C to 20°C 20°C to 70°C 0% RH to 100% RH	± 2°C 1 ± 1°C 1 ± 5% /RH *2
DX2-T3H1	Temperature and Humidity	Three sensor packages: 1 x DX2-T1H1 + 2 x DX2-T1 (four sensors total in three sensor packages)	0°C to 20°C 20°C to 70°C 0% RH to 100% RH	± 2°C 1 ± 1°C 1 ± 5% /RH *2
DX2-AF1 *3	Airflow Management	One airflow sensor + flow rate sensor attachment	0 to 4 m/s	5% FS
DX2-T1DP1	Temperature and Differential Air Pressure	One combination sensor including temperature and differential air pressure functions	0°C to 20°C 20°C to 70°C -250 to 250 Pa	± 1°C ± 1.5% FS (at 20°C, 50% RH)
DX2-PS	Dust/Particle	One dust/particle sensor + particulate matter sensing attachment	0-1000 ?g/m³	± 25 ?g/m3 at 0-100 ?g/m3 ± 25% at 100- 1000 ?g/m3
DX2-CC2	Contact Closure	One contact closure sensor that supports up to 2 contact closures	N/R	N/R
DX2-D2	Dry Contact	One actuator that detects and controls up to 2 wired dry contacts	N/R	N/R
DX2-D2C6	Dry Contact/Contact Closure	One actuator that detects and controls up to 2 wired dry contacts, 5 contact closures, and 1 hall effect switch	N/R	N/R
DX2-PD2 *3	Powered Dry Contact	One actuator that detects and controls up to 2 powered dry contacts with switchable 12V output	N/R	N/R
DX2-PD2C5	Powered Dry Contact/ Contact Closure	One actuator that detects and controls up to 2 powered dry contacts with switchable 12V output and 5 contact closures	N/R	N/R
DX2-WSF-35-KIT *3	Water/Leak Floor	One water sensor + 3.5m floor water sensor accessory	0 to 3.5m	N/R
DX2-WSF-70-KIT *3	Water/Leak Floor	One water sensor + 7.0m floor water sensor accessory	0 to 7m	N/R
DX2-WSF-100-KIT *3	Water/Leak Floor	One water sensor + 10.0m floor water sensor accessory	0 to 10m	N/R
DX2-WSC-35-KIT *3	Water/Leak Floor	One water sensor + 3.5m rope water sensor cable accessory	0 to 3.5m	± 1m (at 27°C, 50% RH)
DX2-WSC-70-KIT *3	Water/Leak Floor	One water sensor + 7.0m rope water sensor cable accessory	0 to 7m	± 1m (at 27°C, 50% RH)
DX2-WSC-100-KIT *3	Water/Leak Floor	One water sensor + 10.0m rope water sensor cable accessory	0 to 10m	± 1m (at 27°C, 50% RH)
DX2-VBR *4	Vibration	One vibration sensor	0 to 13.85g	± 0.1g
DX2-PIR	Proximity/Motion and Tamper	One combination sensor including infrared motion detector, occupancy (proximity), and tamper functions	0 to 5m	N/R
DX2-ENVHUB4	Sensor Hub	One four-port (1x4) hub to expand RJ45 sensor ports on applicable rack power managing devices	N/R	N/R
DX2-REMHUB4	Remote Hub	One four-port (1x4) hub to expand the length of RJ45 sensor ports on SRC-0800/SRC-0803 Raritan Smart Rack Controller models only. Also supports DX2-DH2C2 controller and up to 8 SmartLock? handles.	N/R	N/R
1 when humidity is 20%?60% RH 2 when the temperature is at 25°C 3 sensor type supported in Xerus 4.0.20 Firmware or later 4 sensor type supported in Xerus 4.1.0 Firmware or later FS (Full Scale), g (Force), N/R (Not Rated), Pa (Pascals), RH (Relative Humidity), PM (Particulate Pollution), ?g (microgram)

Raritan Smartsensors Datasheet (2491.5 kB)
