Advantech TPC-B300
Modular TPC - Computing Box Module with Intel Atom and Celeron CPU
Especificaciones
Descripción
Más informaciónes
Productos similares
Imprimir esta pagina
Solicitar Precios
Ensenarme mis notas
PDF
Especificaciones
Descripción
Más informaciónes
PDF
- Computing Box powered by Intel Atom® X6425E/ Intel® Celeron® J6412 with DDR4 SODIMM slot (up to 32GB)
- Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
- 1 x Full-size mini PCIe for iDoor expansion
- 1 x M.2 Key-E 2230 for WIFI + BT module
- 1 x M.2 Key-M 2280 for NVMe SSD (PCIe Gen 3 x 2)
- 1 x 2.5" SATA SSD expansion
- 2 x 2.5Gb LAN
- Supports TPM2.0 hardware security
- Wide Temp Support. Range -20~60 °C (Atom™ X6425E)

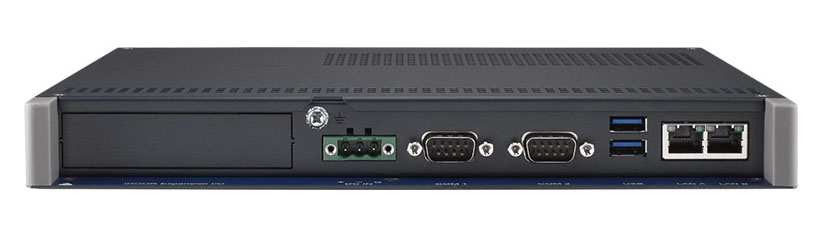

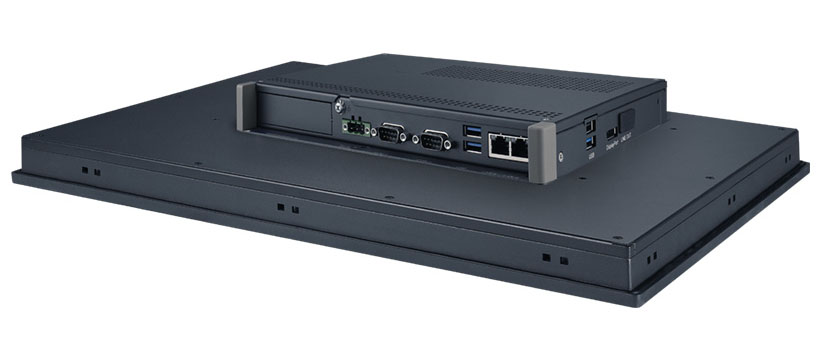

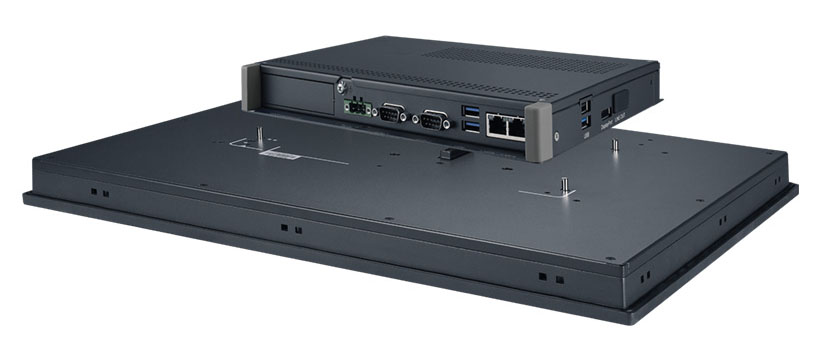

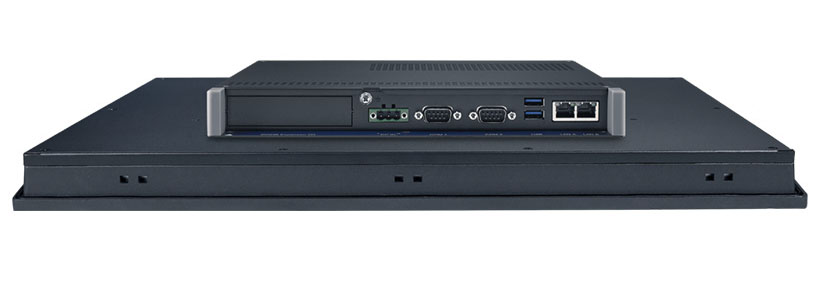

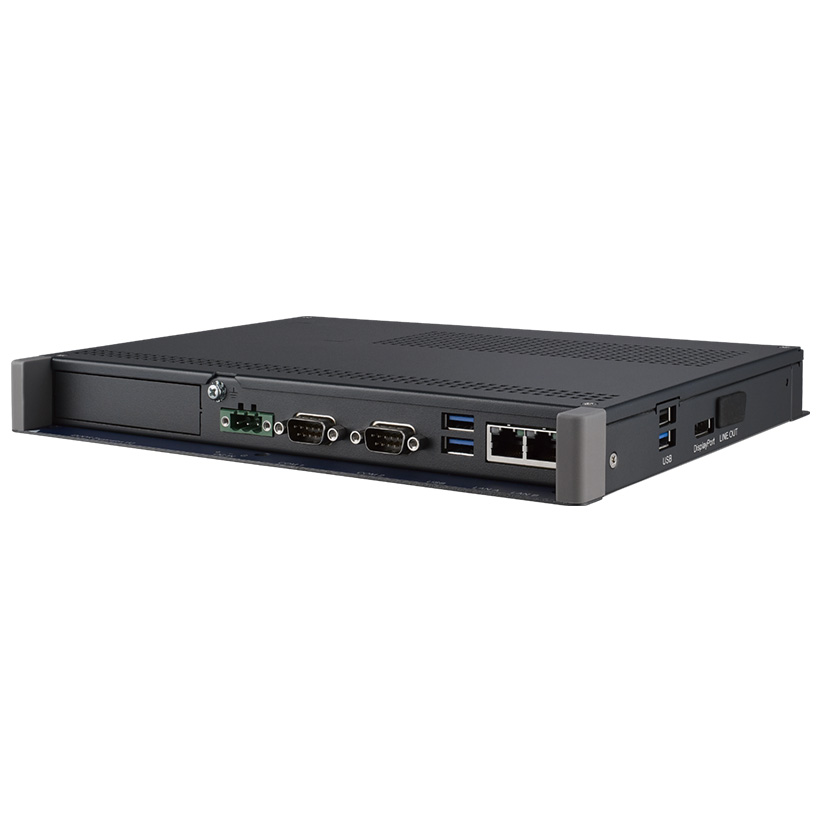

TPC-B300 computing box modules are powered by Intel ® Atom™ X6425E/Celeron ® J6412 Processors to provide compact and fanless control panel solutions that deliver high-performance computing. With a highly flexible modular design, TPC-B300 allows users to change the panel sizes (12"-23.8").
Specifications
General
- Certification
CE, FCC Class A, CB/UL
Cooling System
Fanless design
Dimensions (W x H x D)
269 x 203 x 30 (mm)
Enclosure
Metal
Mounting
*VESA Mount, Wall or Panel Mount
*VESA mount required TPC-5000T-VMKE
OS Support
Windows 10 IoT Enterprise LTSC
Power Input
24 V DC ± 20%
Weight (Net)
2.1 kg (4.6 lbs)
System Hardware
- CPU
Intel ® Elkhart Lake
Atom™ x6425E 2.00 GHz, quad core
Celeron® J6412 2.00 GHz, quad core
Memory
1 x DDR4 SO-DIMM slot (up to 32GB)
Storage
1 x M.2 M key 2280 (SATA/PCIE)
1 x 2.5" SSD/HDD
LAN
2 x Intel ® I226; 2.5GbE
Expansion Slot
1 x Full-size mini PCIe (PCIE/USB2.0)
*Support iDoor module / 4G&5G LTE SIM slot
1 x M.2 AE key 2230 (PCIE/USB2.0)
I/O
2 x RS-232/422/485
3 x USB 3.2
1 x USB 2.0
1 x Line out
1 x Display Port (4096x2160@60Hz)
Power Input
24 V DC ± 20%
Security
TPM 2.0 (built-in)
Environment
- Humidity
95% RH @ 40°C, non-condensing
Ingress Protection
IP66 (for optional panel module with "Panel Mount")
Operating Temperature
-20°C~60°C (Atom X6425E with SATA SSD)
-20°C~55°C (Atom X6425E with NVMe SSD)
0°C~60°C (Celeron J6412 with SATA SSD)
0°C~55°C (Celeron J6412 with NVMe SSD)
Storage Temperature
-20°C~70°C
Power Consumption with Panel Module
| Item | Power Consumption | Screen Size | Resolution | Luminance | Aspect Ratio | |
|---|---|---|---|---|---|---|
| Typ. | Max. | |||||
| TPC-B300 | 21W | 50W | N/A | N/A | N/A | N/A |
| w/ FPM-D12T-CE | 33W | 62W | 12.1" | 1024x768 | 600 ntis | 4:3 |
| w/ FPM-D12T-HE | 35W | 64W | 12.1" | 1024x768 | 1000 ntis | |
| w/ FPM-D15T-CE | 30W | 59W | 15" | 1024x768 | 300 ntis | |
| w/ FPM-D15T-HE | 45W | 74W | 15" | 1024x768 | 1800 ntis | |
| w/ FPM-D17T-CE | 37W | 66W | 17" | 1280x1024 | 350 ntis | 5:4 |
| w/ FPM-D19T-CE | 35W | 64W | 19" | 1280x1024 | 350 ntis | |
| w/ FPM-D15W-FCE | 37W | 66W | 15.6" | 1920x1080 | 450 ntis | 16:9 |
| w/ FPM-D15W-FHE | 46W | 75W | 15.6" | 1920x1080 | 15.6" | |
| w/ FPM-D18W-FCE | 38W | 67W | 18.5" | 1920x1080 | 350 ntis | |
| w/ FPM-D21W-CE | 33W | 62W | 21.5 | 1920x1080 | 250 ntis | |
| w/ FPM-D21W-HE | 63W | 92W, | 21.5" | 1920x1080 | 1400 ntis | |
| w/ FPM-D24W-HE | 42W | 71W | 23.8" | 1920x1080 | 350 ntis | |
*Please find below the Ordering Information for the Panel Module.
Ordering Information
| TPC-B300-J20A | TPC-B300 Box Module Celeron J6412 (10W) |
|---|---|
| TPC-B300-E20A | TPC-B300 Box Module Atom X6425E (12W) |
