- 16 isolated DI and 16 isolated DO channels
- High voltage isolation on all isolated channels (2,500 VDC)
- High sink current on isolated output channels (200 mA/channel)
- Supports dry contact or 5 ~ 50 VDC isolated inputs
- Interrupt handling
- Timer/counter interrupt capability

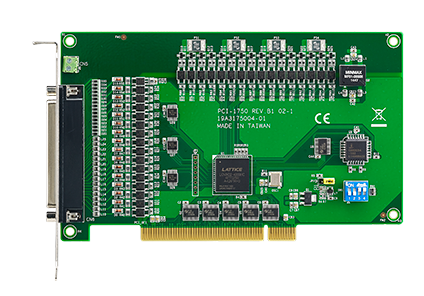

The Advantech PCI-1750 offers 16 isolated digital input channels, 16 isolated digital output channels, and one isolated counter/timer for the PCI bus. With isolation protection of 2,500 VDC, and dry contact support, PCI-1750 is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the PCI-1750 corresponds to a bit in a PC I/O port.This makes PCI-1750 very easy to program. This card also offers a counter or timer interrupt and two digital input interrupt lines to a PC. So you can then easily do configurations by software.
Ordering Information
| Part Number | Description |
| PCI-1750-AE | 32ch Isolated Digital I/O Card w/Counter |
| Accessory | |
| ADAM-3937-AE | DB-37 Wiring Terminal, DIN-rail Mount |
| PCL-10137-1E | DB-37 Shielded Cable, 1m |
| PCL-10137-2E | DB-37 Shielded Cable, 2m |
| PCL-10137-3E | DB-37 Shielded Cable, 3m |
