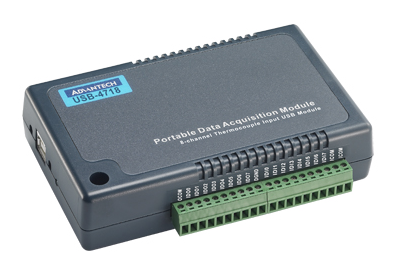

Advantech USB-4718
8-Ch Thermocouple Input USB Module with 8-Ch Isolated Digital Input
Especificaciones
Descripción
Más informaciónes
Productos similares
Imprimir esta pagina
Solicitar Precios
Ensenarme mis notas
PDF
Especificaciones
Descripción
Más informaciónes
PDF
- Supports USB 2.0
- Support voltage, current, and thermocouple inputs
- Bus powered
- 8 thermocouple input channels
- 2,500 VDC isolation
- Supports 4~20 mA
- Wiring terminal on modules
- 8-ch isolated DI and 8-ch isolated DO
- Suitable for DIN-rail mounting
- Lockable USB cable for rigid connection
The Advantech USB-4718 offers 8 thermocouple inputs with 16-bit resolution, up to 0.1% input range accuracy, or 4~20 mA inputs. Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, USB-4718 is the perfect way to add measurement and control capability to any USB capable computer. The USB-4718 is fully USB plug and play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required.
Ordering Information
| Part Number | Description |
| USB-4718-AE | 8ch Thermocouple Input USB Module |
