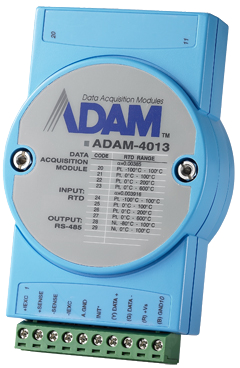

Advantech ADAM-4013

especificaciones  descripción  mas informaciones

Analog RTD Input Module

especificaciones

• Built-in Watchdog Timer

• Accuracy +/- 0.05% or better

• Isolation Voltage 3000 VDC

• Sampling Rate 10 sample/sec

descripción

The Advantech Analog input modules use a microprocessor-controlled integrating A/D converter to convert sensor voltage, current, or RTD signals into digital data. The digital data is then translated into either engineering units, twos complement hexadecimal format or percentage of full-scale range (FSR)according to the module ’s configuration. When prompted by the host computer, the data is sent through a standard RS-485 interface. The Analog Input Modules offer signal conditioning, A/D conversion, ranging, and RS-485 digital communication functions. They protect your equipment from ground loops and power surges by providing opto-isolation of the A/D input and transformer based isolation up to 3000 V DC .

más informaciónes

Ordering Information

Part Number	Description
ADAM-4520-D2E	RTD Input Module
Accessory
ADAM-4520-D2E	RS-232 to RS-422/485 converter w/ iso. Rev. D2E
ADAM-4561-AE	1-port Isolated USB to RS-232/422/485 Converter
PCLS-ADAMVIEW32	HMI Software for ADAM I/O Products
PWR-242-AE	DIN-rail Power Supply
PWR-243-AE	Panel Mount Power Supply
PWR-244-AE	Panel Mount Power Supply
